2024-2025 Ford Mustang 5.0L S650 Stage 1 Gen 6 3.0L Whipple Supercharger Kit

Description

WHIPPLE GEN 6 3.0L STAGE 1 SUPERCHARGER SYSTEM FOR 2024–2026 FORD MUSTANG 5.0L S650 – 50-STATE LEGAL

UP TO 810 HP / 640 TQ • OEM DRIVEABILITY • CARB EO APPROVED

The Whipple Stage 1 Supercharger System for the 2024–2026 Ford Mustang S650 (GT & Dark Horse) pairs the latest Gen 6 3.0L twin-screw with high-flow intake hardware and OEM-grade calibration for incredible, street-legal performance. Expect up to 810 HP and 640 lb-ft with smooth drivability and full 50-state emissions compliance.

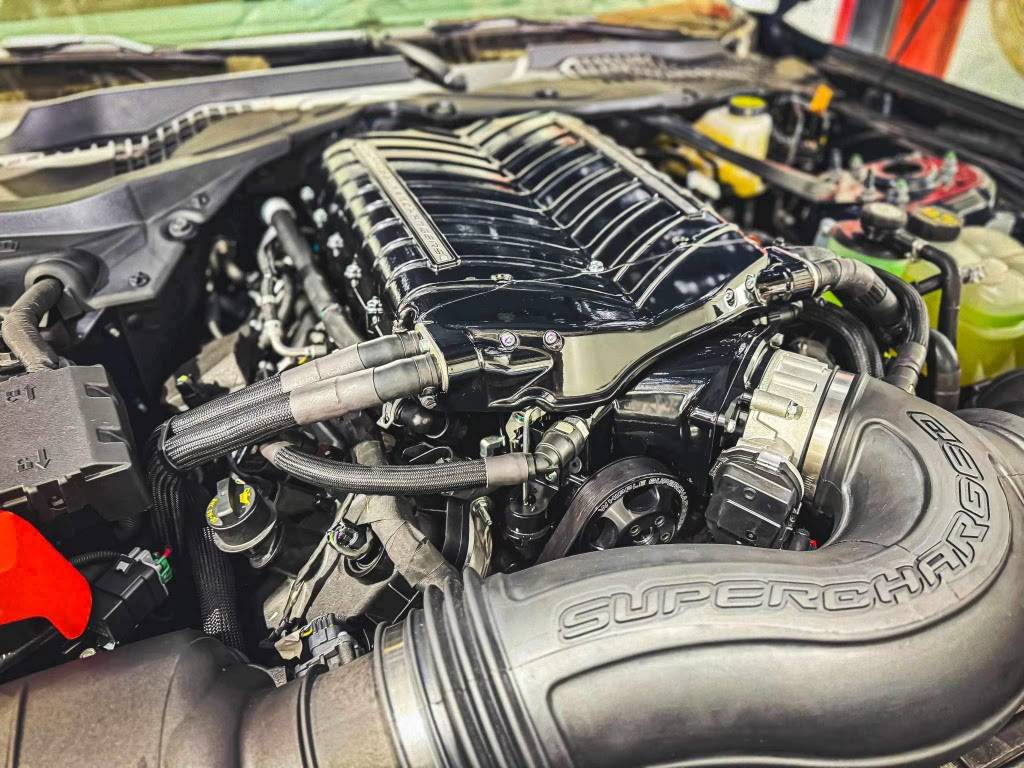

Engineered for the S650 Platform: The inverted Gen 6 layout delivers a factory-fit install under the stock hood with no cutting or grinding. Plug-and-play wiring and OEM quick-connect fittings streamline the process for a clean, serviceable build.

Unleash Enhanced Airflow: Dual high-flow air filters feed an oversized Crusher™ Y-tube and a 120 mm supercharger inlet, compatible with 92 mm, 112 mm, and 120 mm throttle bodies. The result is faster tip-in response and more power across the curve.

Gen 6 Supercharger Technology: Whipple’s 3x4 rotor combo and optimized port geometry cut parasitic loss and lower discharge temps versus previous generations—delivering more usable power per psi.

Advanced Dual Cooling Technology: A patented dual-core, dual-pass intercooler routes the charge through each core twice for exceptional thermal control. Paired with an oversized heat exchanger and high-flow intercooler pump, IATs stay consistent pull after pull.

Precision Calibration: Supplied Tomahawk V2 flash tool and CARB-approved calibration maintain OEM safeguards while maximizing performance, idle quality, and part-throttle manners.

Included in the Kit:

• Gen 6 3.0L Whipple twin-screw supercharger (inverted layout)
• Patented dual-core, dual-pass intercooler system
• Dual high-flow air filters with oversized Crusher™ Y-tube inlet
• High-flow intercooler pump and oversized heat exchanger
• Billet fuel rails and plug-and-play wiring harness
• Tomahawk V2 flash tool with Whipple calibration
• All required mounting hardware
