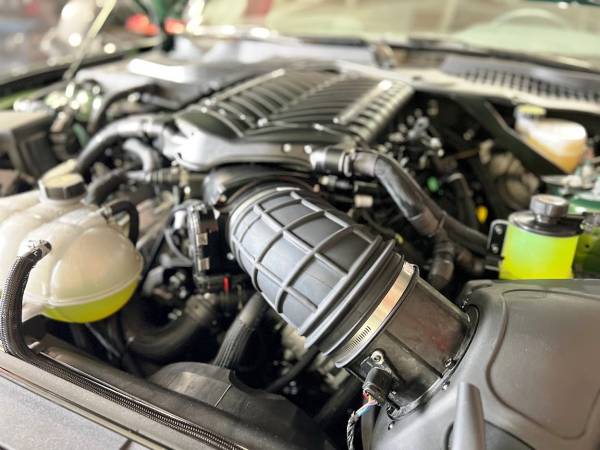

Ford Mustang GT 3.0L Supercharger Kit 2022-2023

Description

Whipple Superchargers has again pushed the boundaries of performance with the Gen 6 3.0L front-feed twin-screw supercharger system for the 2022–2023 Mustang GT. Building on the record-setting S550 platform, the Gen 6 delivers unmatched efficiency, horsepower, and reliability—producing an impressive 765–825 flywheel horsepower and 640–655 lb-ft of torque across all 50-state legal configurations.

The Gen 6 supercharger features Whipple’s most advanced design to date, including all-new bearings, gears, rotors, and housing engineered to reduce friction and maximize airflow. Its cutting-edge 3/4 rotor profile, 285-degree helix angle, redesigned bell-mouth inlet, optimized discharge port, and refined diameter-to-length ratio work together to deliver unprecedented power across the entire rev band.

A patented dual-core, dual-pass intercooler maximizes charge‑air cooling and outperforms even the Whipple Cobra Jet and previous S550 systems. Combined with the industry-leading heat exchanger, upgraded water reservoir, and intercooler pump, the Gen 6 ensures superior temperature control and rapid heat recovery under aggressive driving.

Whipple’s bespoke PCM calibration protocol—developed from decades of OEM and racing experience—precisely manages fuel, spark, knock control, torque management, electronic throttle behavior, and transmission logic. The vehicle’s PCM continuously adjusts engine torque for maximum reliability and performance. Paired with the HP Tuners RTD, it offers unmatched update flexibility and control.

Each complete Whipple kit includes an IAT2 harness and sensor for accurate post‑intercooler temperature monitoring. The billet 6‑rib idler system features a spring‑loaded tensioner, billet idler pulleys, and lightweight pocketed supercharger pulley. The system can be upgraded to a 10‑rib configuration for high‑boost applications. An adjustable idler pulley allows easy belt tensioning across a wide range of pulley sizes.

With its unmatched balance of power, precision, and reliability, the Whipple Gen 6 supercharger system for the Mustang GT sets the modern standard for forced induction—delivering a refined yet brutally powerful driving experience on the street or track.
